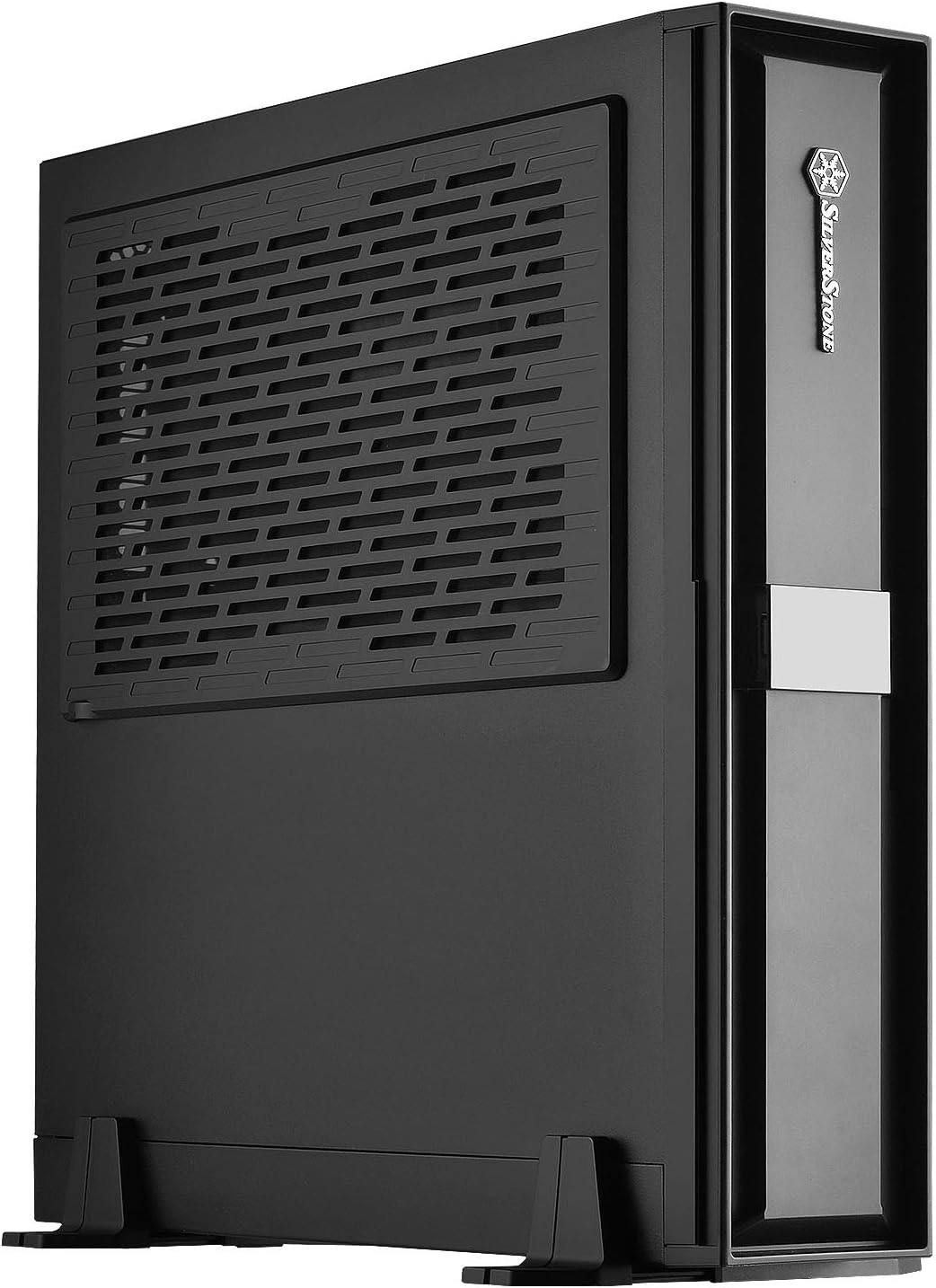

Mini-ITX Slim Small Form Factor Computer Case with Handle Y12322
Mini-ITX Slim Small Form Factor Computer Case with Handle Y12322
Highest performance capability in super slim form factor

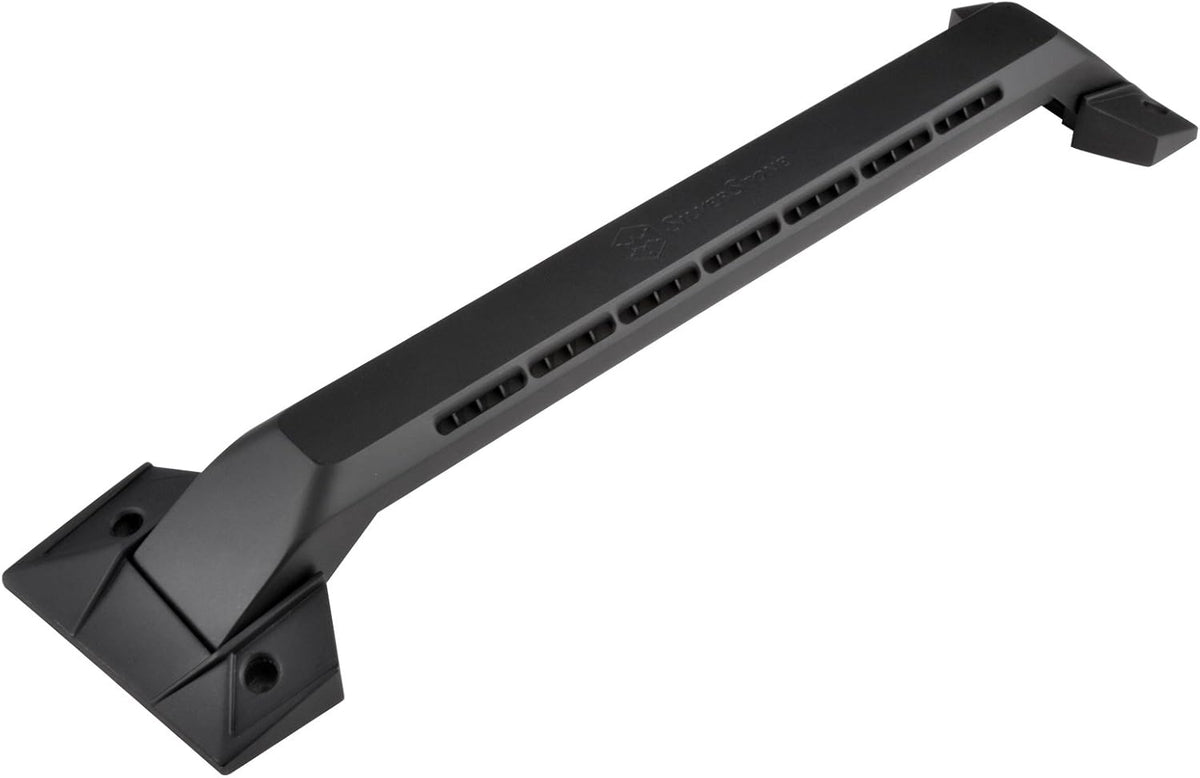

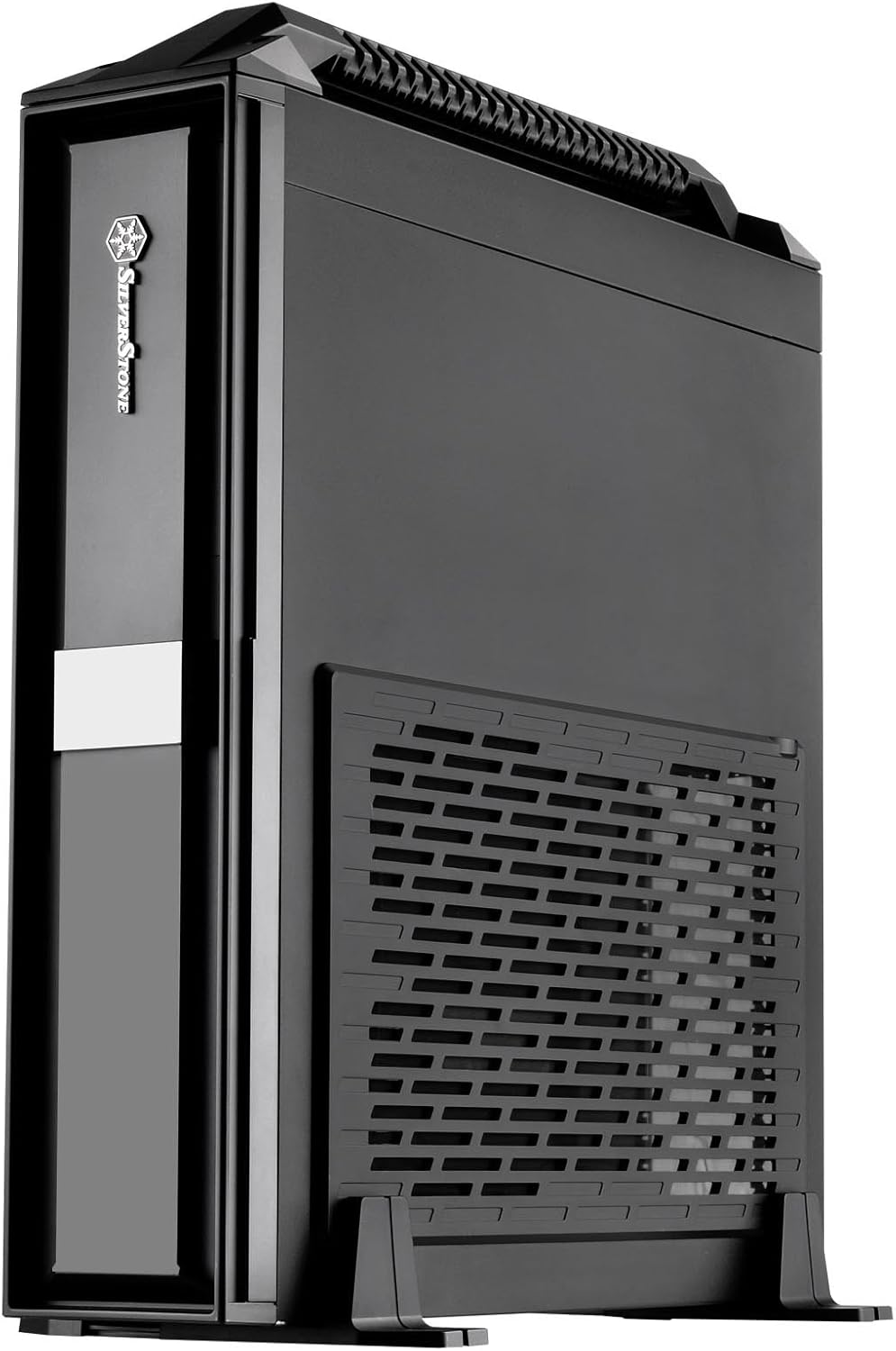

Optional models includes removable carrying handle (ML08B-H, ML08B-HW)
Support graphics card up to 13 inches
Mini-ITX motherboard & SFX PSU compatible
Independent expansion slot design for easy assembly
Tool-less drive cage design
Fits in nearly any environment with horizontal or vertical orientation

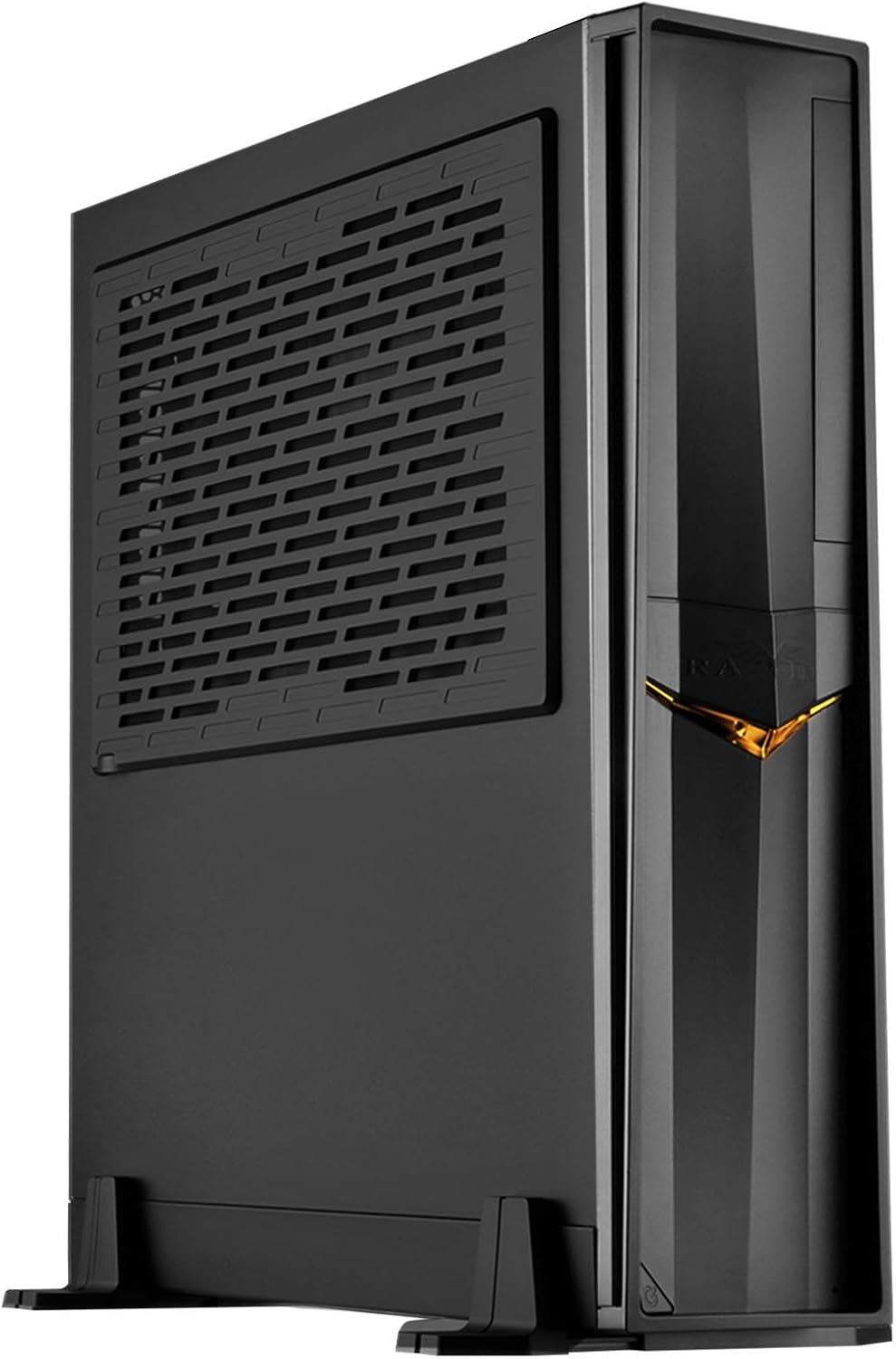

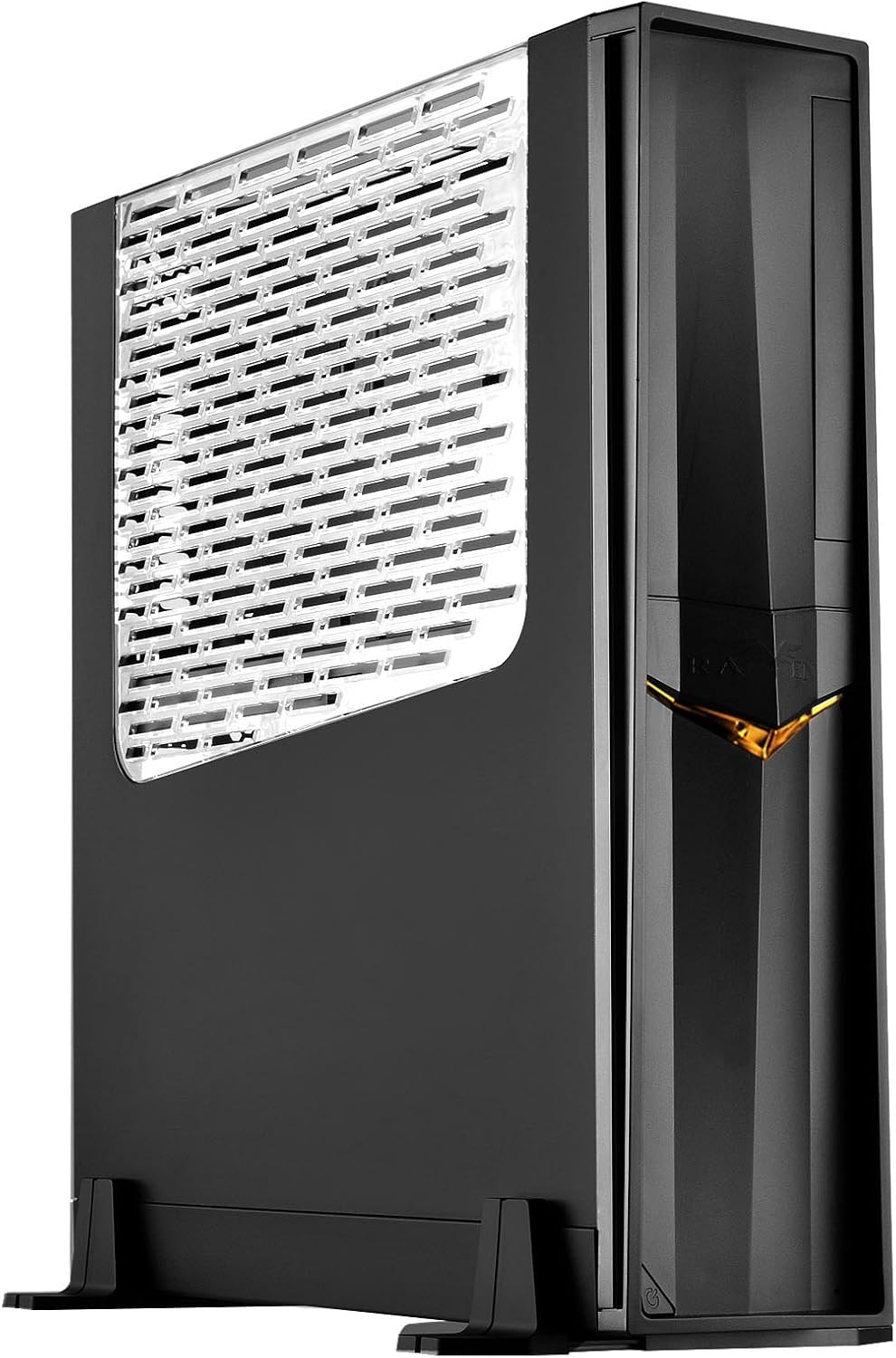

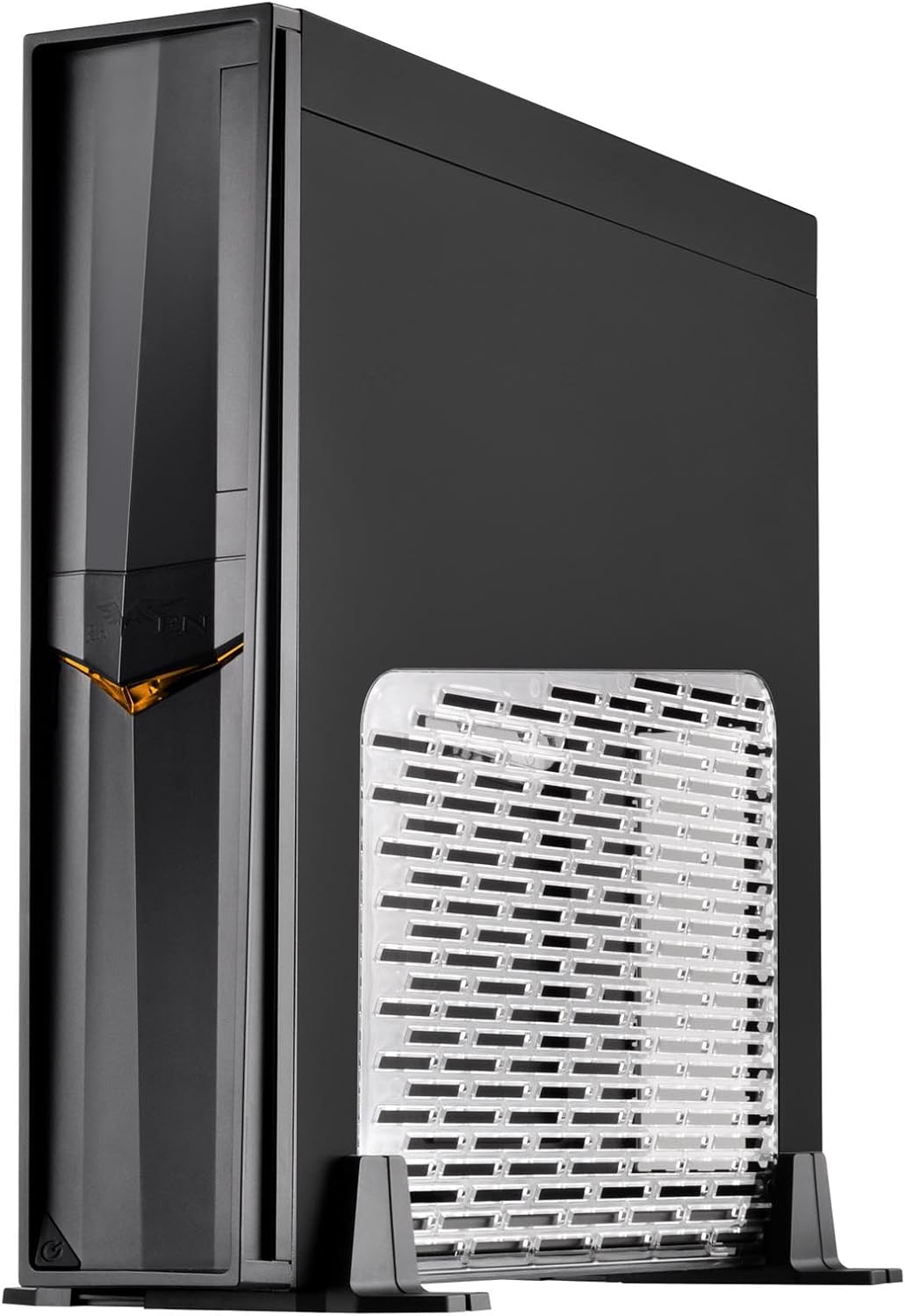

Based on the excellent RAVEN Z RVZ02 chassis, the Milo ML08 is a super slim Mini-ITX console case with highly capable accommodations. With a volume of only 12 liters, this case is small yet easy to assemble when compared to other slim cases in the same class. There is plenty of room for a powerful graphics card up to 13 inches in length while tool-less drive cages make assembly quicker than ever. With clever space utilization and engineering, two major heat sources are separated via the chassis' main chamber so CPU and graphics card can each have their own airflow path. Despite its diminutive size, the ML08 is a remarkably versatile case that can be used anywhere from being a compact desktop workstation (in vertical orientation) to a living console or HTPC (in horizontal orientation). There are even optional models of ML08 with integrated handle, making them effortlessly portable and perfect for any slim PC build.
| ML03B | ML04B | ML05B | ML06B | ML06B-E | ML09B | |
|---|---|---|---|---|---|---|
| Motherboard Type | mATX | mATX | ITX | ITX | ITX | ITX |
| Dimensions | 17.32' (W) x 4.13' (H) x 13.39' (D) | 17.32' (W) x 4.13' (H) x 13.78' (D) | 13.78' (W) x 3.9' (H) x 8.03' (D) | 13.78' (W) x 3.9' (H) x 8.07' (D) | 13.78' (W) x 3.9' (H) x 8.07' (D) | 13.78' (W) x 3.9' (H) x 8.07' (D) |
| Volume | 15.7 liters | 16.2 liters | 7 liters | 7 liters | 7 liters | 7 liters |
| CPU Cooler Limit | 70mm | 70mm | 37mm with 3.5' drive or 120mm fan, 47mm with optical drive, 70mm with nothing above | 37mm with 3.5' drive or 120mm fan, 47mm with optical drive, 70mm with nothing above | 37mm with 3.5' drive, 47mm with optical drive or included slim fan, 70mm with nothing above | 37mm with 3.5' drive, 47mm with optical drive or included slim fan, 70mm with nothing above |
| PSU Limit | ATX (140mm deep) | ATX (140mm deep) | SFX (100mm deep) | SFX (100mm deep) | SFX (100mm deep) | SFX (100mm deep) |
| Expansion Card Limit | Four low-profile | Four low-profile | One low-profile | One low-profile | One dual-slot low-profile (6.9' long) | One dual-slot low-profile (6.9' long) |
| Fan Slots | 4 x 80mm | 4 x 80mm | 2 x 80mm, 1 x 120mm | 2 x 80mm, 1 x 120mm | 2 x 80mm, 1 x 120mm | 2 x 80mm, 1 x 120mm |
| Drive Bays | 1 x 2.5', 2 x 3.5' / 2.5', 1 x 5.25' / 3.5' / 2 x 2.5' | 1 x 2.5', 2 x 3.5' / 2.5', 1 x 5.25' / 3.5' / 2 x 2.5' | 4 x 2.5', 1 x 12.7mm slot-loading optical or 1 x 3.5' / 2 x 2.5' | 4 x 2.5', 1 x 12.7mm slot-loading optical or 1 x 3.5' / 2 x 2.5' | 4 x 2.5', 1 x 12.7mm slot-loading optical or 1 x 3.5' / 2 x 2.5' | 4 x 2.5', 1 x 12.7mm tray-loading optical or 1 x 3.5' / 2 x 2.5' |
| Included Fans | None | None | None | None | 1 x 120mm fan | 1 x 120mm fan |
